SPT-301 Non-Invasive Pulse Tonometer

A lab technician looks through a microscope in Millar’s ISO Class 7 clean room.

High-Fidelity Hemodynamics from the Surface of the Skin

The SPT-301 Pulse Wave Tonometer delivers arterial waveforms straight from skin contact, with no catheter and no insertion, making it a proven tool for accurate cardiovascular monitoring.

High-Fidelity, Motion-Resistant Design

The SPT-301 uses Millar sensing technology to capture detailed carotid, femoral or radial artery waveforms with clarity and consistency.

Easy Integration into Your Setup

Seamlessly connect the tonometer to standard blood pressure monitors or DAQ setups using Viking-compatible cables (e.g., TEC-10D, PEC‑10C). Once integrated, it outputs real-time waveforms and enables dual-sensor setups to calculate pulse wave velocity and arterial stiffness.

Research-Ready Performance

The SPT-301 supports critical assessments like pulse wave velocity and augmentation index measurements, commonly used in evaluation heart failure, hypertension, arterial stiffness, and stroke risk, and it is cited in numerous clinical studies.

SPT-301 Pulse Wave Tonometer Applications

The Millar SPT-301 Pulse Wave Tonometer can be used to evaluate cardiovascular function in various health conditions including:

  • Heart Failure
  • COPD
  • Hypertension
  • Diabetes
  • Arteriosclerosis
  • Blood Circulation Status

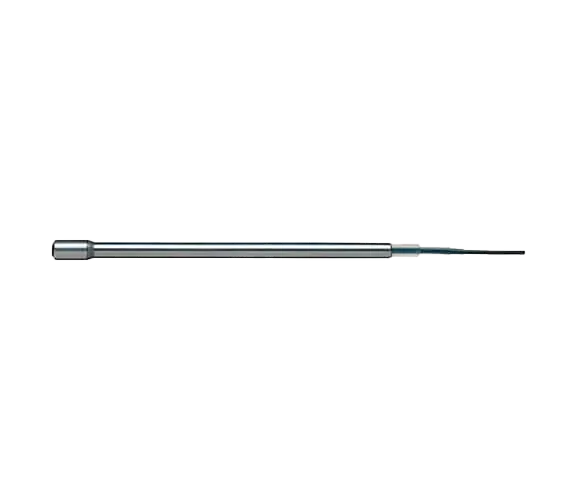

Millar’s SPT-301 Non-Invasive Pulse Wave Tonometer.
Millar’s SPT-301 Non-Invasive Pulse Wave Tonometer.
SPT-301 Pulse Wave Tonometer Specifications
Product Reference808-1019
Sensor TypeDiffused semiconductor
Length6 inches
Pressure Range0 to +300 mmHg (0 to 40 kPa)
Overpressure+4000 mmHg (+530 kPa), -760 mmHg (100 kPa)
Sensor Sensitivity5 µV/V/mmHg, nominal (37.6 µV/V/kPa)
Pressure ConnectorViking
MaterialStainless steel
TipNylon
Sensor Sensitivity1/4-inch diameter
# of Sensors1
Use LifeReusable, non-sterile
Repair Life3 years

Publications That Cite Pulse Wave Tonometer

Novel Methods for Pulse Wave Velocity Measurement

Journal of Medical and Biological Engineering, October 14, 2015.

Effects of Antihypertensive Drugs on Central Blood Pressure in Humans: A Preliminary Observation

American Journal of Hypertension, August 2013.

Cyclooxygenase Inhibition Augments Central Blood Pressure and Aortic Wave Reflection in Aging Humans

American Journal of Physiology, Heart and Circular Physiology, June 15, 2012.

A Millar employee peers through a microscope in Millar’s ISO Class 7 clean room.

Indications for Use Statement

The Mikro-Tip® Pulse Transducer can be used when measuring non-invasive high-fidelity pressure waveforms from the carotid, femoral and radial artery. Additional contraindications, precautions and warnings are referenced in the Instructions for Use available under the Knowledge Center. This product is not available for sale in the EU.

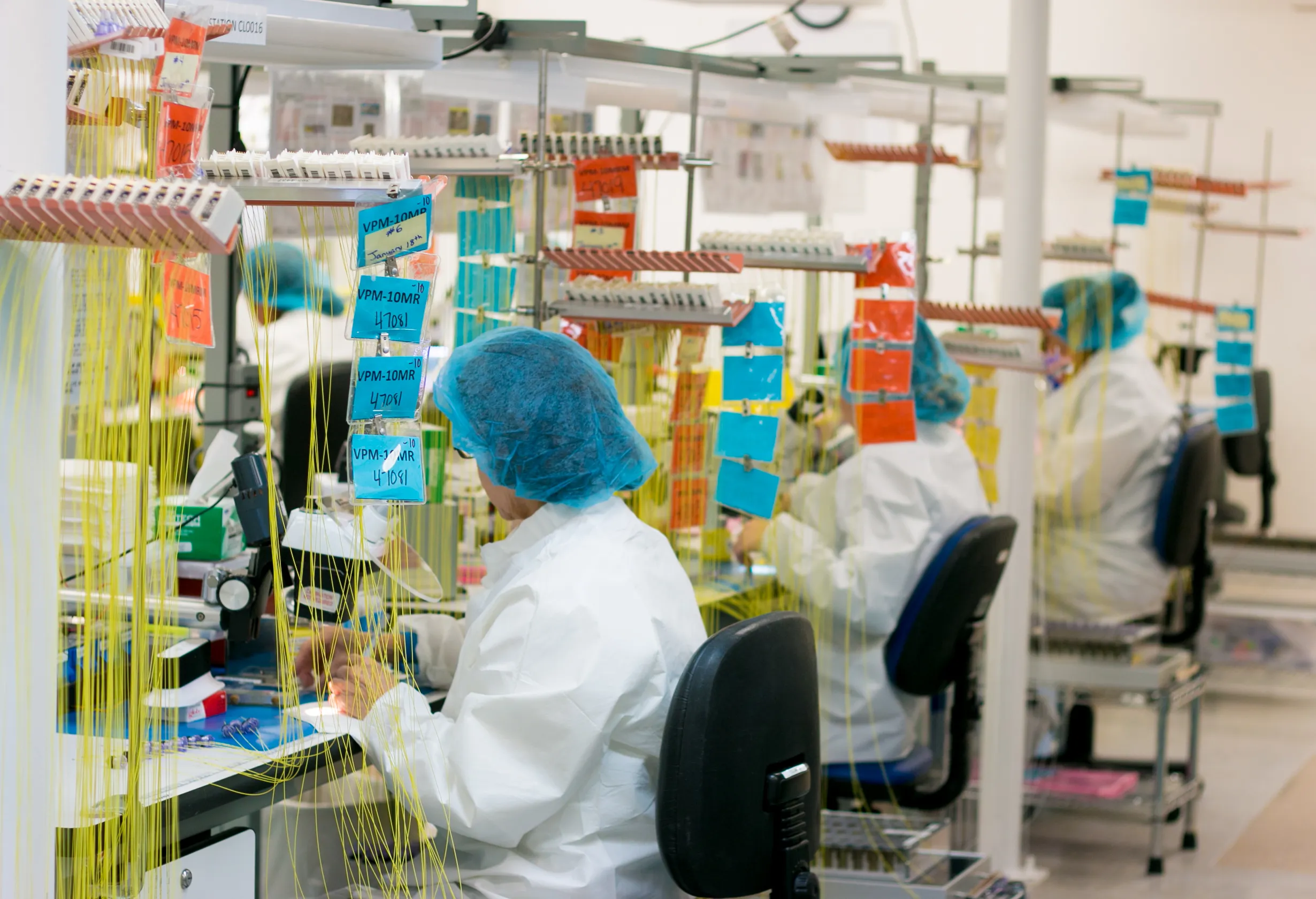

Millar employees work in Millar’s ISO Class 7 clean room.

SPT-301 Pulse Wave Tonometer FAQ

What does the SPT‑301 measure?

Millar’s SPT-301 Pulse Wave Tonometer measures arterial pressure waveforms from the arterial, femoral or radial artery, which is used to assess cardiovascular function including pulse wave velocity (PWV) and arterial stiffness.

Can I measure absolute blood pressure with the SPT-301?

No. Due to variables in placement and applied pressure, the SPT‑301 isn’t calibrated for continuous absolute arterial pressure.

Can the SPT-301 Pulse Wave Tonometer be reused?

Yes. You can connect the tonometer to the PCU‑2000 Control Unit or units like the MPVS Duo via PEC‑10C interface cables for seamless signal acquisition.

Can the SPT-301 Pulse Wave Tonometer be reused?

Yes. The SPT-301 can be used repeatedly. It can be cleaned and sterilized according to protocol. It is not for single use.

Connect with Our Medical Sales Team

Want to learn more about the Pulse Wave Tonometer? Our medical sales team is here to answer your questions and help you explore how our technology can support your clinical or research goals.

Members of Millar’s OEM Solutions Team write on a whiteboard at Millar’s headquarters.
Download Icon

Download the SPT-301 Pulse Wave Tonometer Cutsheet

Learn how Millar’s SPT-301 Pulse Wave Tonometer enables simple, non-invasive assessments of the cardiovascular system.
