Pressure-Volume Loop Measurement Studies

FOR ANIMAL USE ONLY

MPVS Duo delivers robust and repeatable cardiovascular measurements for researchers around the world.

Millar and ADInstruments: A Partnership Founded in Excellence

With a combined 85+ years of experience in research excellence, ADInstruments and Millar ensure you have the right technology and support to unlock new insights and push the boundaries of discovery.

Driving Breakthrough Research with Deeper Cardiovascular Insights

Comprehensive data leads to more powerful insights. That’s why Millar is at the forefront of cardiovascular research, supporting leading efforts worldwide with innovative instrumentation like the MPVS Duo for complete pressure-volume (PV) loop analysis. Our Pressure-Volume Loop Systems feature:

Real-Time Loop Generation

Capture synchronized pressure-volume loops instantly.

Small and Large Animal Compatibility

Ideal for mouse and rat models; catheter sizes designed for pre-clinical research.

Easy Software Integration

Analyze load-independent indices using LabChart or PV Loop software with built-in calculations.

Minimized Signal Drift

Solid-state catheters reduce recalibration time and improve repeatability.

MPVS Duo: The Premier Solution for Animal Cardiac Function Assessment

Compatible with Millar’s complete line of small-animal PV loop catheters and large-animal Ventri-Cath® PV loop catheters, the MPVS Duo delivers robust and repeatable cardiovascular measurements for researchers around the world.

  • Small and large animal capabilities
  • Dual catheter inputs for simultaneous pressure and PV measurements
  • Real-time volume feedback for optimizing catheter position
  • On-screen guided workflows to simplify training and data collection
  • Internal ECG amplifiers for seamless integration
  • Software-controlled user interface
  • Automated pressure sensor balance
  • Comprehensive, easy-to-use analysis software
  • Compatible with Millar’s single-segment and multi-segment Mikro-Tip® PV catheters

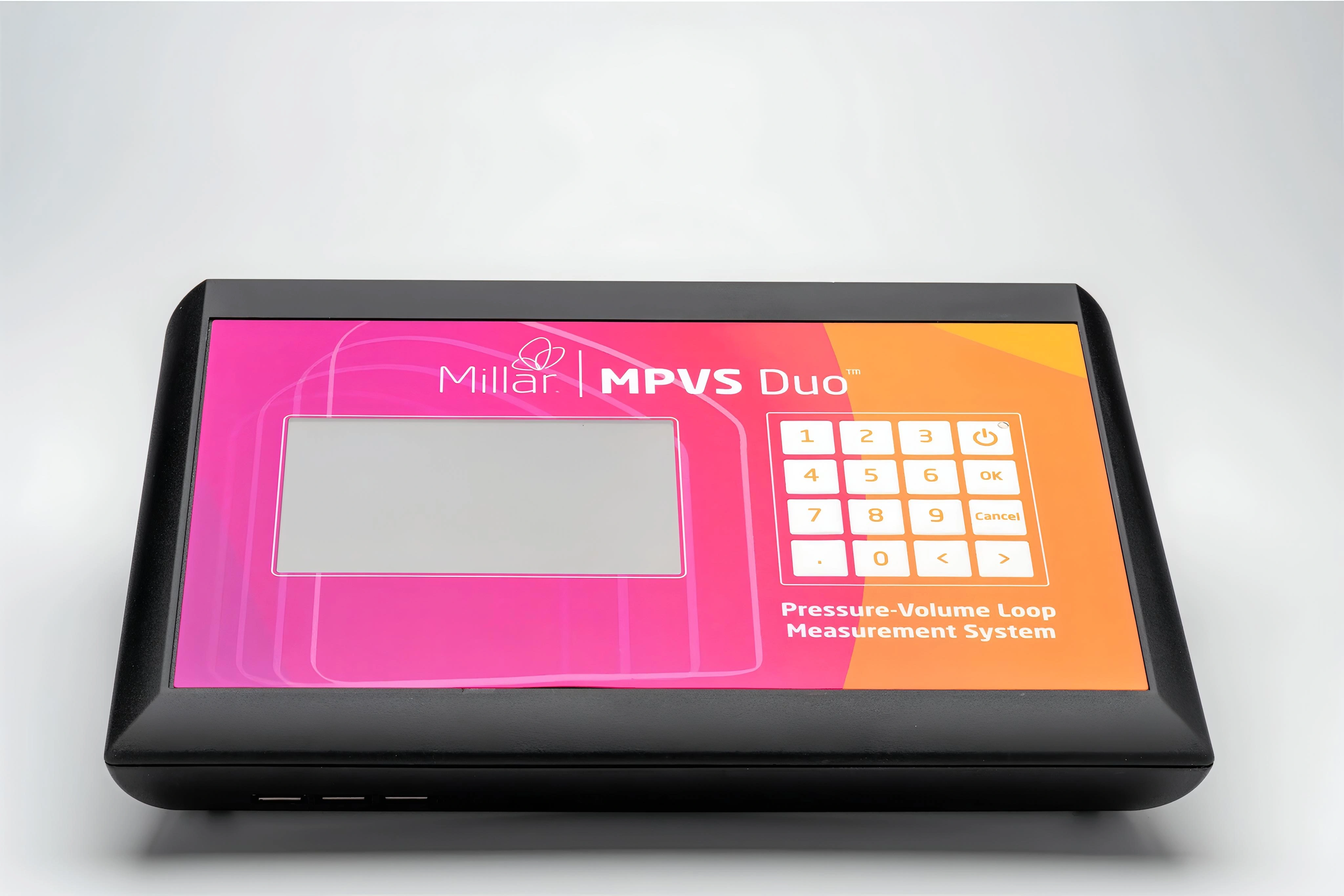

Millar’s MPVS Duo Pressure-Volume Loop System device.

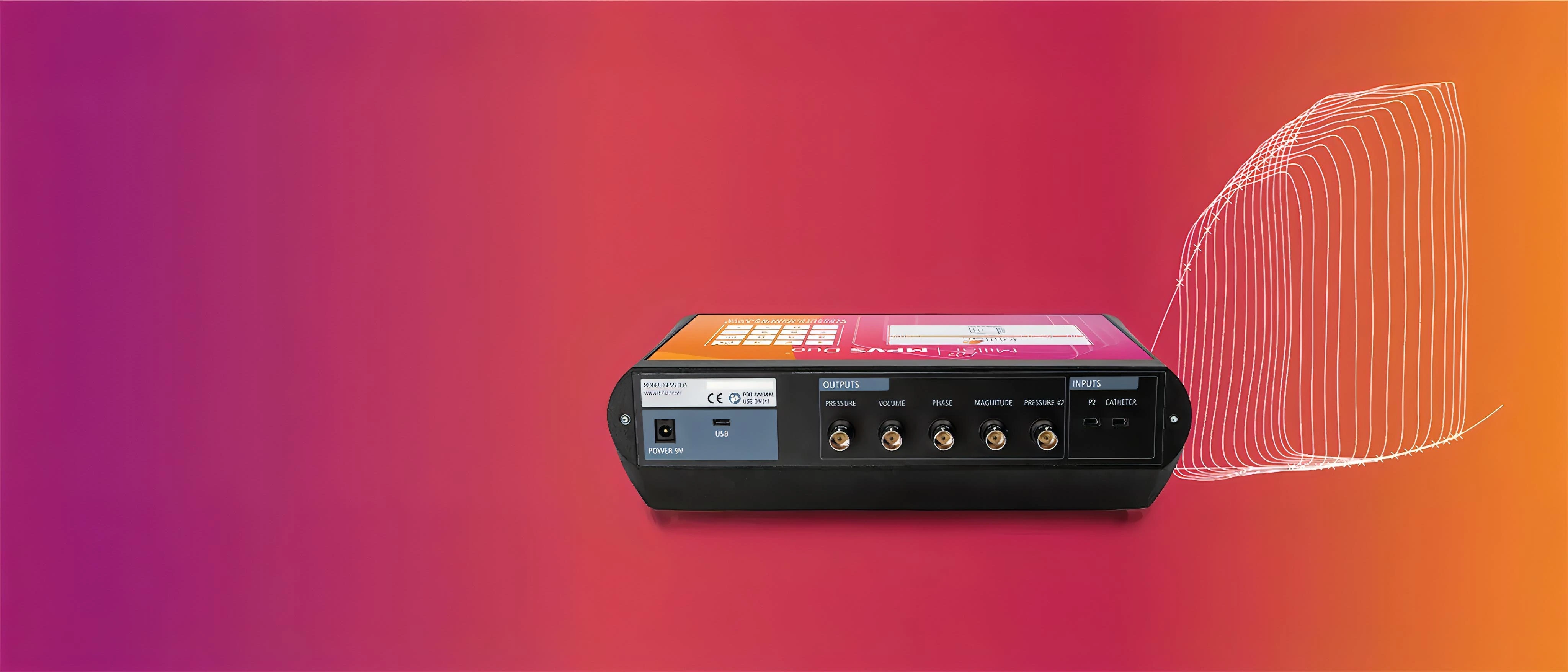

Millar’s MPVS Duo Pressure-Volume Loop System device.

Pressure-Volume (PV) Loop Catheters

For complete pressure-volume (PV) loop analysis in both large and small animal models, Millar’s PV loop catheters integrate seamlessly with the MPVS Duo system. These catheters combine high-fidelity pressure sensors and electrodes for simultaneous, real-time pressure and volume measurements, enabling minimally invasive, continuous intracardiac PV analysis with unprecedented accuracy and precision.

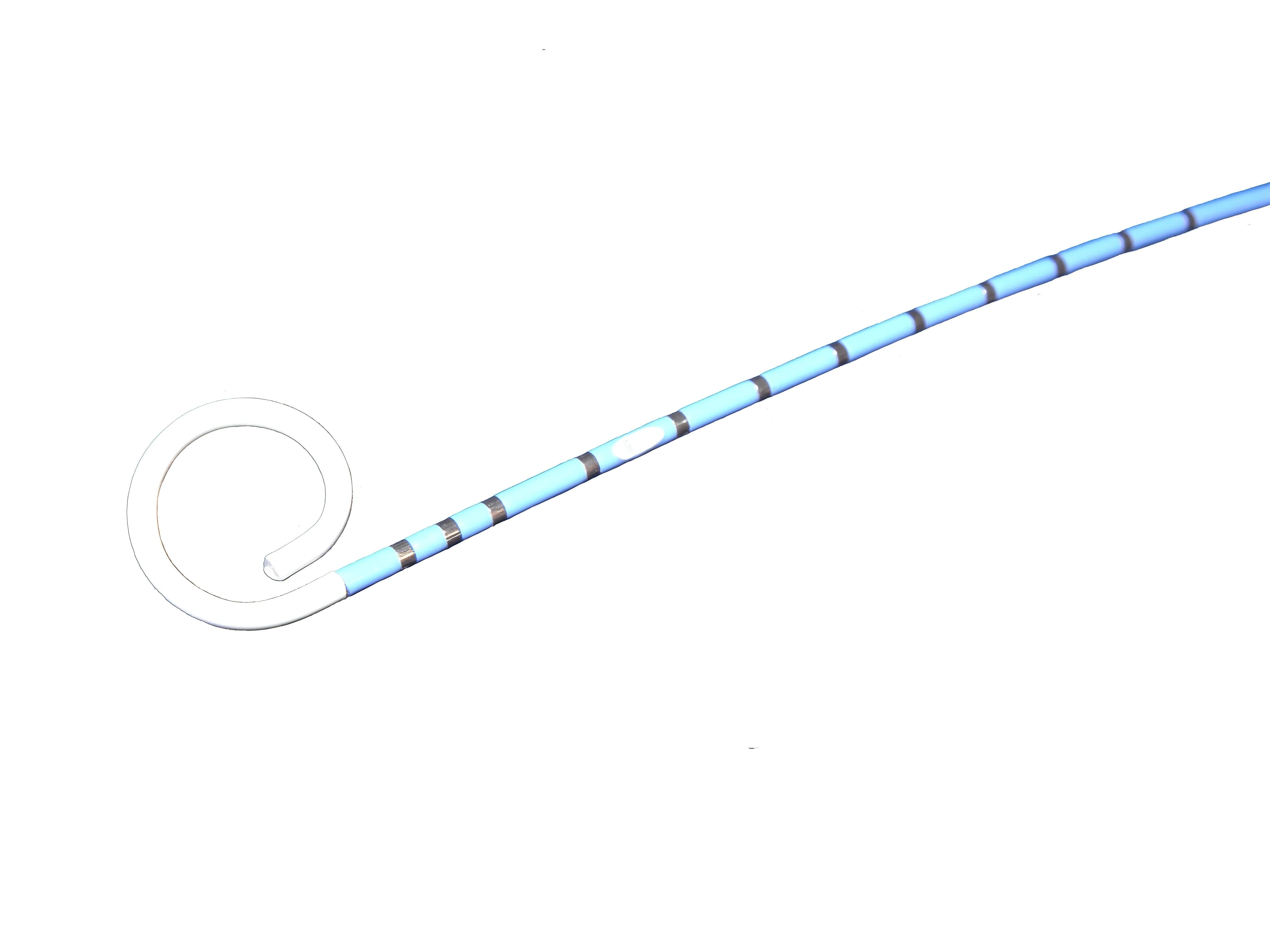

A Millar pressure-volume loop catheter.
A Millar pressure-volume loop catheter.
Products
ModelSubjectTipTip F Size# of SensorsElectrode SpacingLength
SPR-839MouseStraight1.4F14.5 mm3.5 cm
PVR-1045MouseStraight1F14.5 mm3.5 cm
PVR-1035MouseStraight1F13.5 mm3.5 cm
PVR-1030MouseStraight1F13 mm3.5 cm
SPR-838RatStraight2F19 mm12.5 cm
SPR-869RatStraight2F16 mm12.5 cm
Ventri-Cath 507Pig and SheepPigtail or Straight5F17 mm120 cm
Ventri-Cath 510Pig and SheepPigtail or Straight5F110 mm120 cm
Ventri-Cath 512Pig and SheepPigtail or Straight5F112 mm120 cm
Ventri-Cath 515Pig and SheepPigtail or Straight5F115 mm120 cm

Pressure-Volume Loop FAQ

What is a pressure-volume (PV) loop system and what does it measure?

A PV loop system measures cardiac function by recording pressure and volume changes in the left or right ventricle throughout the cardiac cycle. It provides critical insight into cardiac contractility, compliance, preload, afterload, and more.

What makes the MPVS Duo system unique?

The MPVS Duo system offers real-time, high-fidelity pressure and volume signals using Millar’s Mikro-Tip conductance catheters. It’s designed for use in all animal models and integrates seamlessly with data acquisition platforms like LabChart for full cardiovascular analysis.

Can the PV loop system be used in multiple species?

Yes. Millar offers a wide range of Mikro-Tip catheter sizes to support small and large animal models — from mice and rats to pigs and dogs — making the system ideal for translational research.

What software is needed to analyze PV loop data?

Millar PV loop systems are designed to work with LabChart software by ADInstruments. LabChart’s PV Loop Module provides tools for automated data acquisition, analysis and visualization of key hemodynamic parameters.

How is volume calibrated in the PV loop system?

Volume calibration is achieved using a combination of admittance measurements, parallel conductance correction (via hypertonic saline or cuvette methods), and other model-specific techniques. Millar offers guidance and tools for accurate calibration.

What kind of support is available for new users?

Millar and ADInstruments provide extensive onboarding support, including setup assistance, user manuals, video tutorials, and access to experienced technical specialists for training and troubleshooting.

Is the MPVS Duo system suitable for chronic studies?

The MPVS Duo is primarily designed for acute studies, though certain components can be adapted for chronic protocols depending on study design and species. Millar can advise on best practices for your use case.

Get Precise Pressure Results

For more information on how Millar and ADInstruments are working together to provide precise pressure and pressure volume research results, please download the Accuracy Matters brochure.

Connect with ADInstruments

Ready to get the right device for your pre-clinical study? Contact ADInstruments for the right products and guidance you need to get started.
