MEMS Pressure Sensors: Driving the Next Wave of Life-Saving Medical Innovation

A Millar Mikro-Cath pressure catheter which uses a MEMS pressure sensor to provide accurate, real-time pressure measurements in the body.

MEMS Pressure Sensor Integration

Our high-performance microelectromechanical systems (MEMS) sensors seamlessly integrate into medical devices and applications. As a top MEMS pressure sensor integrator, our experts are here to advance your next breakthrough.

Sensor Selection

Sensor selection is based on application, size, characteristics, length of use, accuracy and drift requirements. Our OEM Solutions team understands the nuances of each sensor and how to achieve the best results for your device.

Optimized MEMS Pressure Sensor Integration

Developed over 55 years of innovation, our integration process is guaranteed to improve yields and circumvent MEMS integration challenges, reducing cost and time to market for medical devices.

Pressure Icon

Applications Using MEMS Pressure Sensors

Viable applications for MEMS pressure sensor integration are virtually limitless, including cardiovascular, airway pressure, intracranial pressure, compartment pressure and urodynamics.

MEMS in Action

Ultra-miniature and biocompatible, our piezoresistive MEMS sensors fit where space is limited, seamlessly integrating into complex medical devices and delivering decades-proven performance in both invasive and non-invasive care.

Cardiovascular FFR

Millar’s proven pressure sensing technology can be integrated into an FFR pressure wire or catheter design to enable continuous, high-fidelity measurements within a coronary artery for treatment guidance on intermediate lesions and multi-vessel coronary artery disease (CAD).

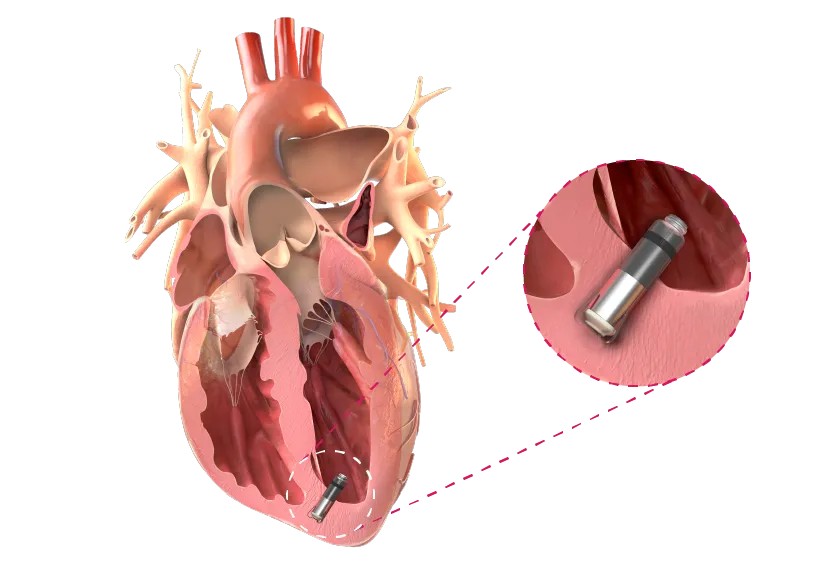

Graphic rendering of a human heart with a Tisense implantable.

Left and Right Heart Applications

High-fidelity, integrated pressure sensing devices help monitor clinical conditions like pulmonary hypertension, congenital heart disease, mechanical circulatory support, peripheral vascular, left ventricle pressure, valvular disorders and more.

Graphic rendering of a human heart with a Tisense implantable.

Respiratory Support and Therapy

Continuous pressure monitoring in controlled or assisted respiration support devices is critical to reducing complications. The addition of pressure sensors directly to respiratory devices can also support improved feedback mechanisms for intubated patients.

Compartment Syndrome

Continuous pressure monitoring for compartment syndrome is critical in understanding pressure changes over time. MEMS pressure sensing technologies provide stability to deliver reliable, accurate measurements even during patient movement.

A graphic rendering of human leg muscles with Millar’s Mikro-Cath pressure catheter.

Traumatic Brain Injury

Millar’s MEMS pressure sensors can be integrated into minimally invasive devices to provide continuous intracranial pressure (ICP) monitoring, helping clinicians manage traumatic brain injury, hydrocephalus and other neurocritical conditions with precision.

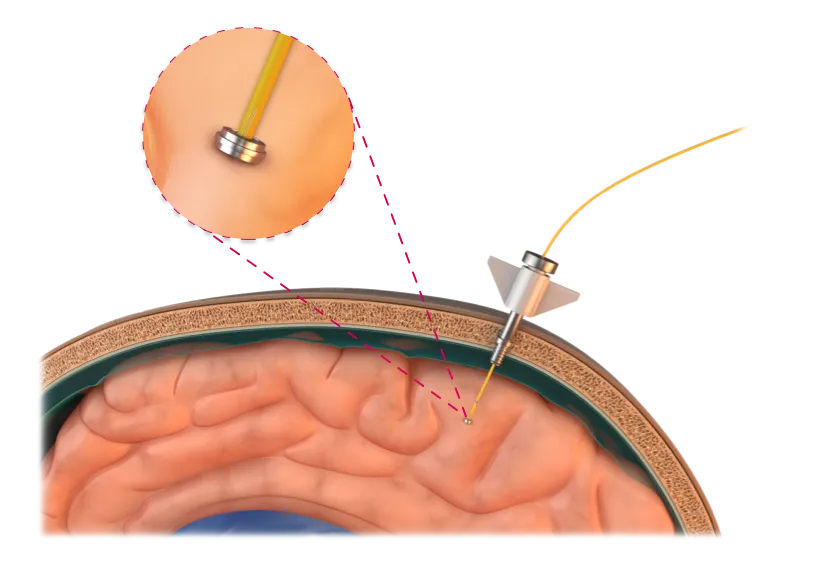

Graphic rendering of a human brain and skull with a tisense implantable.

Medium length section heading goes here

Medium length section heading goes here

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat.

Medium length section heading goes here

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat.

What is MEMS Technology?

MEMS stands for microelectromechanical system. “Micro” means these devices typically measure less than a millimeter in any direction. They are “systems” in that they employ both electrical and mechanical forces in a single unit.

Why integrate MEMS sensors into medical devices?

Millar pressure transducers are the gold standard for accurate measurement of pressure in clinical and pre-clinical applications. Throughout Millar’s history, the company has developed progressively smaller sensors both to minimize interference with physiological parameters and to access smaller venues. Miniaturization to the level of MEMS devices opens up new opportunities for acquisition of pressure information in greater detail and from formerly inaccessible areas.

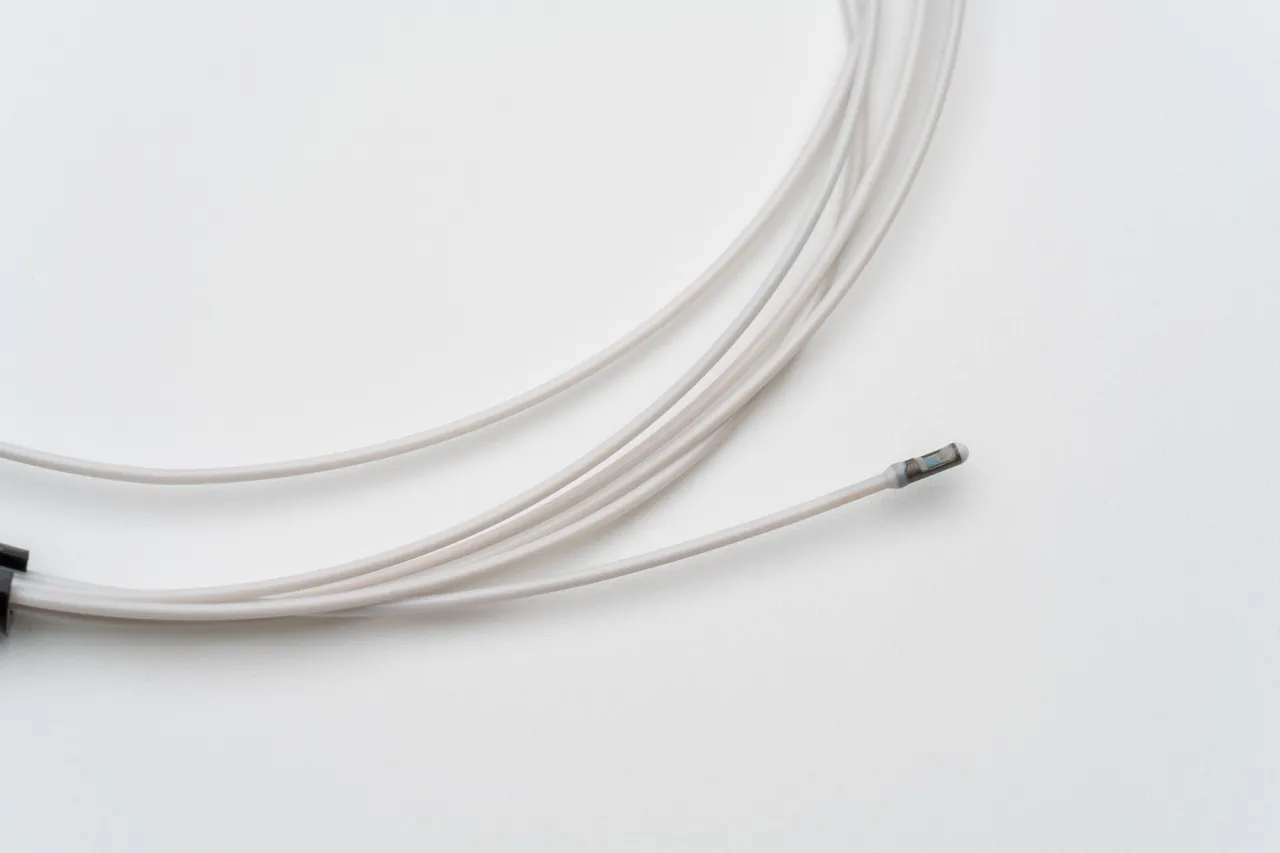

A Millar microelectromechanical system (MEMS) sensor.
MEMS Pressure Sensor Specifications
PFB1100 Full BridgePFB1000 Full BridgePFB800 Full BridgePFB440 Full BridgePHB225 Half Bridge
Circuit4 MEMS piezoresistors4 MEMS piezoresistors4 MEMS piezoresistors4 MEMS piezoresistors2 MEMS piezoresistors
Sensitivity8–15 µV/V/mmHg8–15 µV/V/mmHg8–15 µV/V/mmHg8–15 µV/V/mmHg5 µV/V/mmHg
Pressure Range-300 to +1000 mmHg-300 to +1000 mmHg-300 to +1000 mmHg-300 to +1000 mmHg-50 to 300 mmHg
Accuracy & Linearity< 1% error over -50 to 200 mmHg applied pressure< 1% error over -50 to 200 mmHg applied pressure< 1% error over -50 to 200 mmHg applied pressure< 1% error over -50 to 200 mmHg applied pressure±1% error over -50 to 150 mmHg applied pressure
Temperature Error< 1% (15–40) deg C.< 1% (15–40) deg C.< 1% (15–40) deg C.< 1% (15–40) deg C.< 3.5% (15–40) deg C.
DriftAverage = 0.2 ± 0.1 mmHg over 3 hoursAverage = 0.2 ± 0.1 mmHg over 3 hoursAverage = 0.2 ± 0.1 mmHg over 3 hoursAverage = 0.2 ± 0.1 mmHg over 3 hoursAverage = 0.89 ± 0.44 mmHg over 7 days
Bridge Resistance3.9K to 5.1K3.9K to 5.1K3.9K to 5.1K3.9K to 5.1K3.4 KΩ ± 20%
ResolutionAnalog outputAnalog outputAnalog outputAnalog outputAnalog output
Sensor TypeVentedVentedVentedVentedAbsolute

MEMS FAQ

How do MEMS pressure sensors work?

MEMS pressure sensors make use of piezoelectricity. Pressure applied to certain materials produces an electrical voltage, which can be measured. MEMS piezo-resistive sensors sense a change in resistance across a thin silicon diaphragm. This technology is widely used in industrial sensors and is well proven. The sensors are rugged and measure pressure only at the source. Over the years, Millar has perfected integration methods with these sensors to greatly reduce the effects of drift resulting from integration. Catheters built with sensor tips are robust and can navigate tortuous paths in the human vasculature. The interface electronics are fairly simple and can connect to commercially available monitors. Since pressure is measured only at the tip, this technology does not suffer from damping and resonance effects of fluid-filled lines.

What makes MEMS sensors better than fluid-filled sensors?

Millar MEMS sensors offer faster response, higher fidelity and fewer artifacts than fluid-filled transducers, which can be affected by damping and motion-induced errors.

Click here to read more about the difference between fluid-filled sensors and MEMS sensors.

What size sensors do you integrate?

We offer a diverse range of sensor sizes for integration, catering to various medical applications. Our sensors span in size from 1F (French) to 3F (French), accommodating a wide spectrum of medical device requirements.

The integration process of these sensors is a meticulous and collaborative endeavor. Our comprehensive approach involves several steps, including assessment, consultation, sensor selection and more. To learn more about the integration process and how Millar can assist you, contact us today. To see all our range of sensor solutions, download our sensor portfolio.

Are MEMS pressure sensors implantable and for how long?

Yes. Millar offers implantable MEMS pressure sensors. For acute monitoring, our catheter-based solutions support days to weeks; for chronic monitoring, our TiSense™ implantable platform is engineered for 5+ years in-body use (with appropriate system design). Typical applications include cardiovascular, neurocritical care and more.

Is the output analog or digital?

Millar offers both analog differential voltage as well as digital I²C output options.

What is the accuracy and drift performance?

MEMS sensors offer high accuracy (< ±3% over –30 to +300 mmHg) and superior stability, with maximum drift < 6 mmHg in 12 hours.

Can I test the sensors before committing?

Yes, you can request a Pressure R&D Kit to bench-test sensors in your prototype before full integration. Explore our R&D kits here.

Which applications do these sensors serve?

Millar’s MEMS sensors are used in diverse applications including cardiovascular (FFR, ventricular), airway monitoring, intracranial pressure, compartment pressure, and more.
